Kempower C Stations - DC Fast Charging

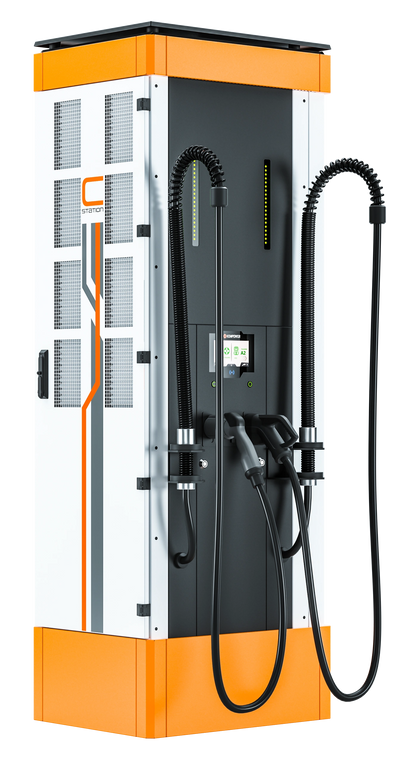

Kempower C-Station is a compact and modular fast electric vehicle charging station for electric cars, electric commercial vehicles, and electric off-highway vehicles. C-Station is a combined CPU and a Satellite as a single unit. It inherits the user interface hardware and cable handling from the Satellite post.

Typically, C-Stations have either 1 or 2 CPU cabinets that offers power from 40 to 320 kW and it can have 1 – 2 DC charging outlets fixed on one or both sides. Advanced cable handling with spring support provides ranges from 4 to 6 meters. Furthermore, while the total outlet number as a single cabinet build is 4, it may provide power to 1-2 satellites as far as the outlet number is 4.

The C-Station is optimal on drive through electric vehicle charging stations where the small footprint and minimal cabling are a necessity. Charging power management can be selected from static or dynamic to meet application needs. On static power management, each power module is routed to specific charging cable or further routed to external Satellite post outlet. On dynamic power management charging power is routed optimally to any of the outlets up to full power respectively to cable sizing and number of charging outlets. Dynamics versatility offers nearly limitless possibilities for DC Fast charging.

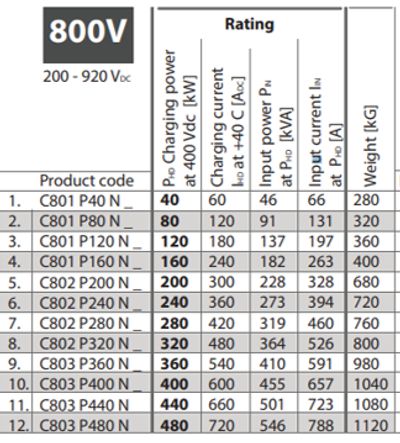

See Table

94% @ nominal output power

40 - 480 kW, 200 -920VDC

-40 to +55 ˚C (with derating)

CCS2, CHAdeMO, Type 2

5 m reach, with 7m option.

• Weight - See Table
• C801: 650x2350x825 mm
• C802: 1300x2350x825 mm
• C803: 1850x2350x825 mm

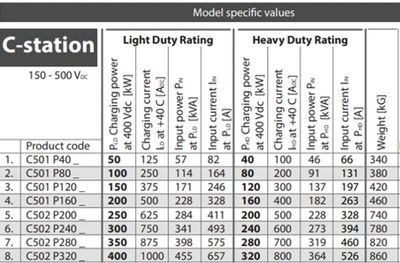

See Table

94% @ nominal output power

50 - 400 kW, 150 -500VDC

-40 to +55 ˚C (with derating)

CCS2, CHAdeMO, Type 2

5 m reach, with 7m option.

• C501: 650x2350x825 mm
• C502: 1300x2350x825 mm
• Weight: See table
